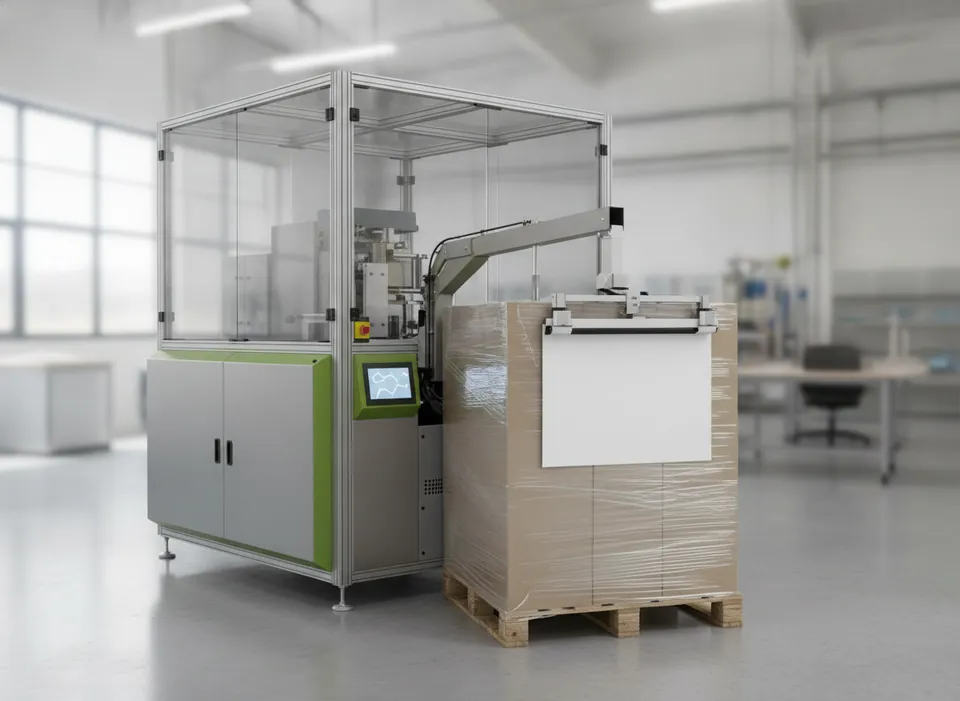

Pallet Print-and-Apply Labeller
SSCC labels on two sides of every pallet, automatically.
Built around your product
After stretch wrapping, the PA-P200 prints an A5 GS1 logistics label and applies it to two adjacent pallet faces. A scanner checks each label and the system reports the SSCC to the warehouse system.
A thermal print engine images each label by direct thermal or thermal transfer. In a print-and-apply system the liner is stripped at a peel edge and the label is held on a vacuum pad, then tamped, blown or wiped onto the pack. Servo applicators measure the approach so varying case heights are labelled without crushing.
Key features
- Two- or three-side application
- Integrated barcode verification
- Safety-rated protective enclosure
- Label designs to the GS1 logistics standard
Process sequence
Receive
Label data arrives from ERP, WMS or the line controller.
The engine prints text, barcodes and graphics at 203–600 dpi.
Peel
The label separates from its liner and transfers to the applicator pad.
Apply
Tamp, blow or wipe-on places the label on the moving pack.
Check
A scanner reads the barcode and flags no-reads.
Machine video
A closer look at a typical label printers & print-apply installation. Ask us for a live demonstration of the PA-P200 on your own product.
Specifications
| Model | PA-P200 |
|---|---|
| Print method | Direct thermal / thermal transfer |
| Resolution | 203 / 300 dpi |
| Print width | 168 mm (6-inch engine) |
| Print speed | 200 mm/s |
| Label size | A5 (148 × 210 mm) |
| Applicator | Two-side swing-arm tamp, 700 mm reach |
| Throughput | Up to 120 pallets/hour |
| Interfaces | Ethernet, I/O, WMS interface |
Typical configuration. Final values depend on your product and are confirmed in the quotation.
Add-ons
- Tamp, tamp-blow, wipe-on or corner-wrap applicators
- Barcode scanner with re-apply logic
- Low-label and ribbon-out beacon
- Height-adjustable stand
Suitable materials and packs
Questions
Direct thermal or thermal transfer?
What does a pallet label need to contain?
Can one applicator handle different case sizes?
Get a proposal for this machine
- Application review by an engineer — material, code and line speed
- Trial marking, printing or packing on your own samples
- Quotation with layout, lead time, installation and service
