Electronics & PCB Coding & Packaging
Micro 2D codes on PCBs and components, with inline SMT handling.
What electronics & pcb lines need
Electronics traceability starts with a 2D code a few millimetres wide on the bare board. Marking must be clean, ESD-safe and integrated into the SMT line, and component marks must survive reflow and cleaning.
Typical codes and marks
- PCB serial and lot DataMatrix
- Component date and type marks
- Housing and connector logos
- ESD and compliance symbols
What matters most
Tiny codes
UV and fiber lasers write DataMatrix codes down to 2 × 2 mm on solder resist, ceramics and chip packages.
Inline handling
Loaders, conveyors and flip units present boards to the laser and pass SMEMA signals along the line.
Process resistance
Laser marks survive soldering temperatures, flux and wash chemistry.
Machine families for electronics & pcb
UV Laser Marking Machines
355 nm “cold” marking for plastics, films, glass and heat-sensitive components.
Fiber Laser Marking Machines
High-contrast permanent marks on metals and engineering plastics, on the fly or at a workstation.
Conveyors & Line Automation
Modular conveyors, accumulation tables, PCB handling and cobot cells that link machines into a line.
Vision & Code Inspection Systems
Cameras that read, verify and grade every code and label — and reject what fails.
Continuous Inkjet (CIJ) Printers
Non-contact small-character coding on almost any surface, flat or curved, at high line speeds.
Sealing & Vacuum Packaging Machines
Band sealers, chamber vacuum machines, tray sealers and thermoformers for extended shelf life.
Machines to start with

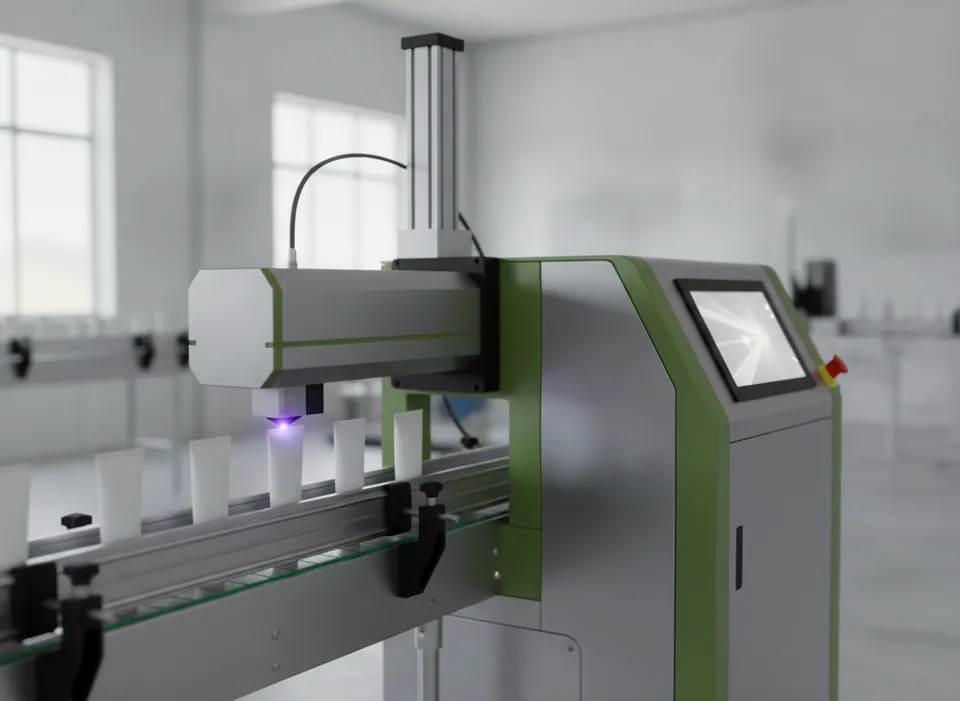

3 W UV Laser Coder
Entry UV coder for plastics, films and labels at moderate speeds.
20 W Fiber Laser Coder
Compact on-the-fly fiber laser for date, lot and 2D codes on metal and plastic packs.

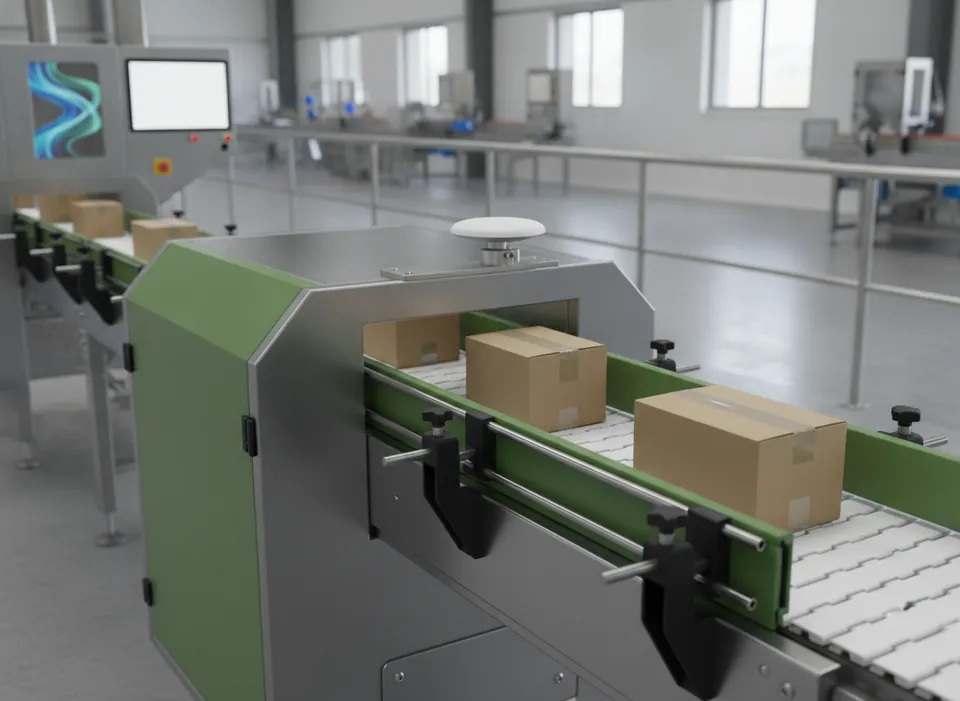

Modular Belt Conveyor
Standard conveyor for coding stations and line links.

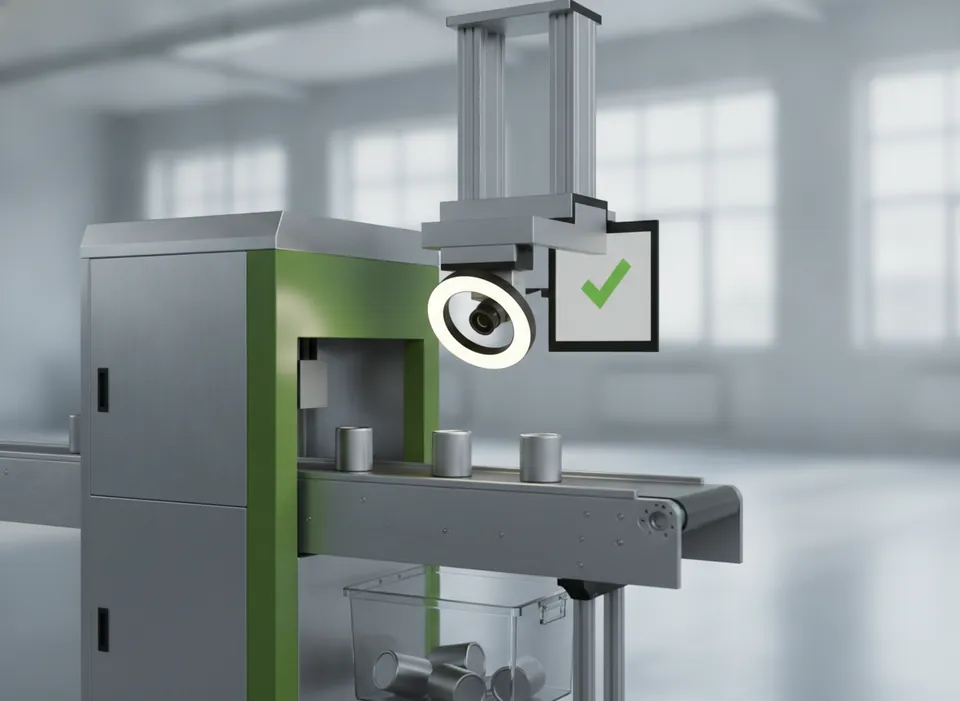

Date Code OCR Inspection System
Checks every date and lot code for presence and correctness.
Entry-Level CIJ Printer
Straightforward date and batch coding for single-shift lines.

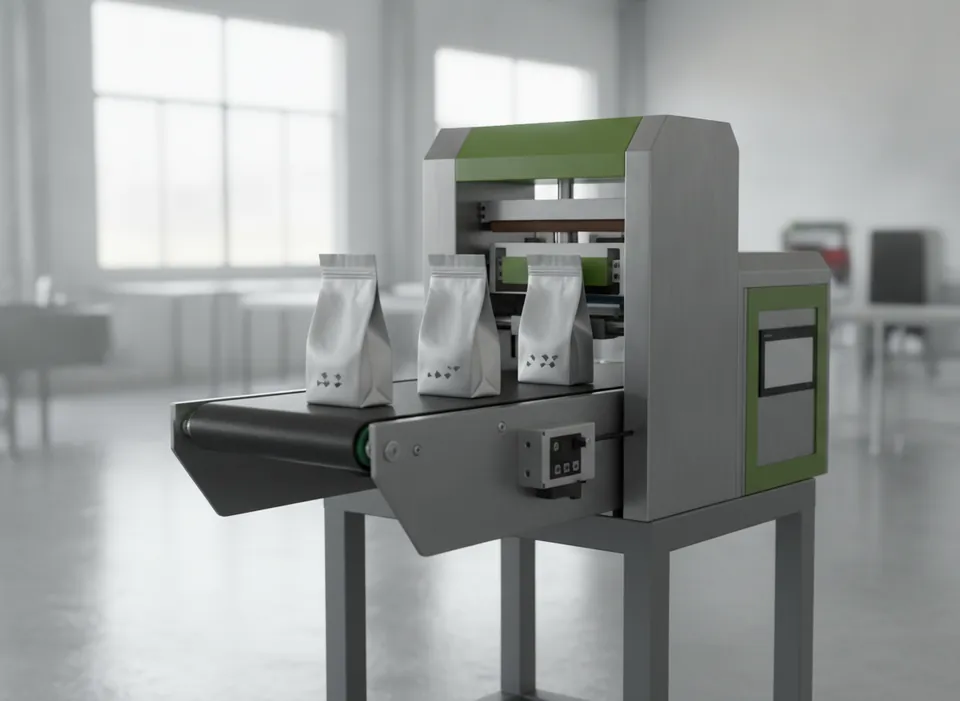

Continuous Band Sealer with Date Coder
Seals and codes pouches in one pass.
Planning a electronics & pcb project?
Send a sample, a drawing or just a description. We will recommend the right machine and show you the result.
