Labeling Machines
Pressure-sensitive and sleeve labelling for round, flat and oval containers, cartons and trays.
Also called sticker labelling machines, bottle labellers and sleeve applicators.
What these machines do
Automatic labellers apply pre-printed self-adhesive labels or shrink sleeves to products at a controlled position and speed. Configurations cover wrap-around, front-and-back, top, bottom and tamper-evident labelling.
A servo or stepper drive pulls the label web past a peel plate so each label releases as the product arrives. Spacing belts, a wrap station or top hold-down keeps the container steady while the label is wiped on. A gap sensor registers each label; a product sensor times the dispense. Coders such as TTO, TIJ or laser can be mounted to print variable data on the label first.
Typical options
- Clear-label sensor
- Integrated date coder on the labelling head
- Orientation station for handles or seams
- Missing-label detection with reject
Used in
Works on
Labeling Machines at work
A closer look at a typical installation. Ask us for a live demonstration on your own product.
Labeling Machines
Wrap-Around Bottle Labelling Machine
Full or partial wrap labels on round containers.
Front & Back Labelling Machine
Two labels in one pass on flat, oval and square bottles.

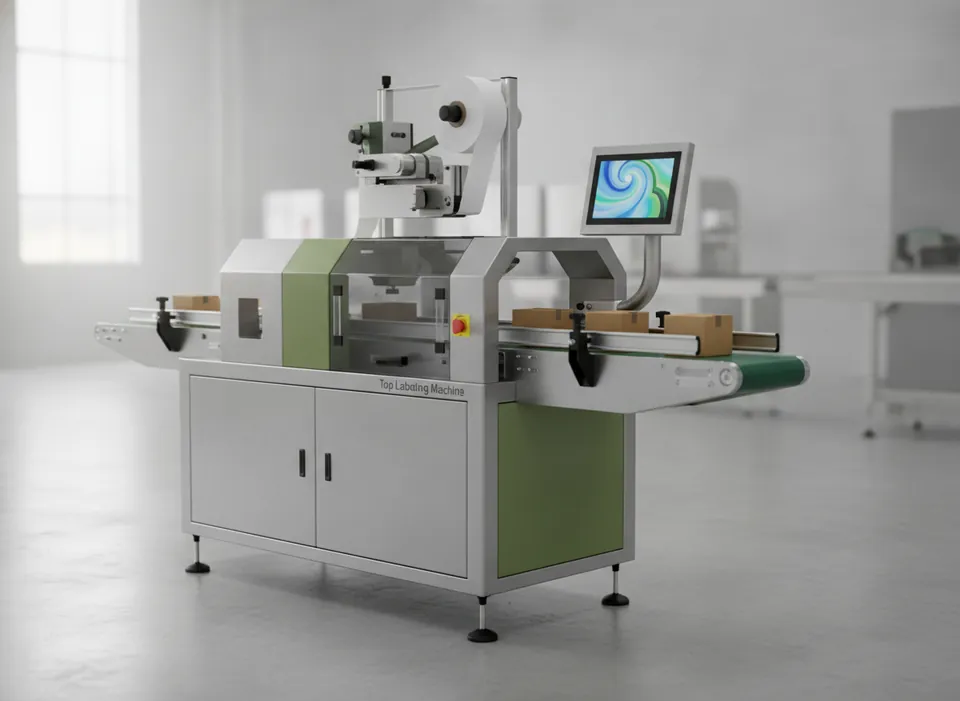

Top Labelling Machine
Flat-surface labelling for cartons, pouches, lids and trays.

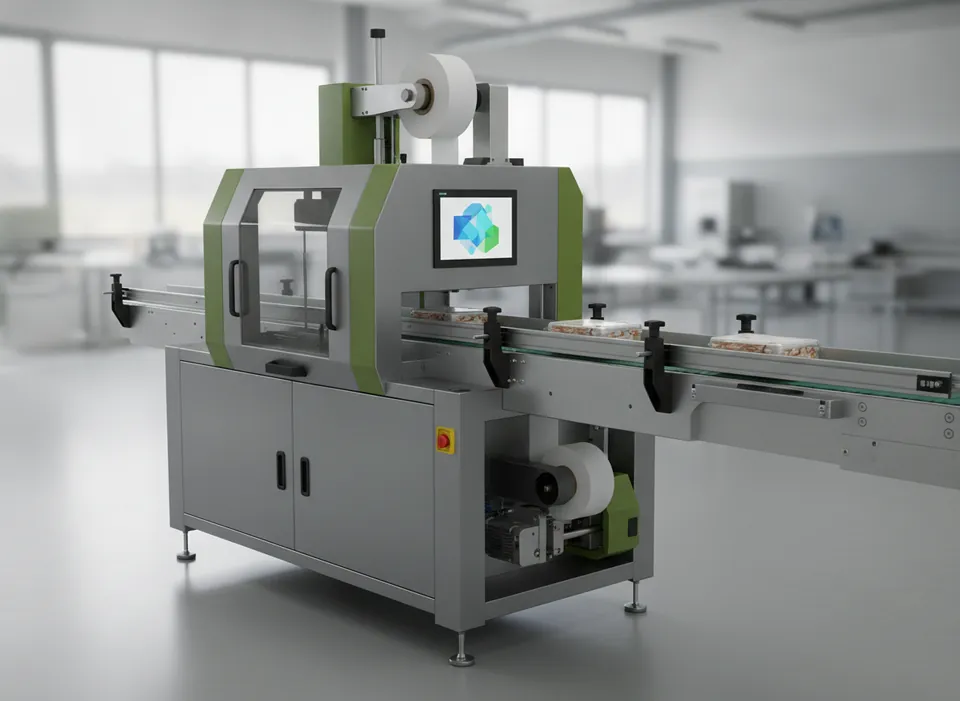

Top & Bottom Labelling Machine
Labels both faces of trays and clamshells in one pass.

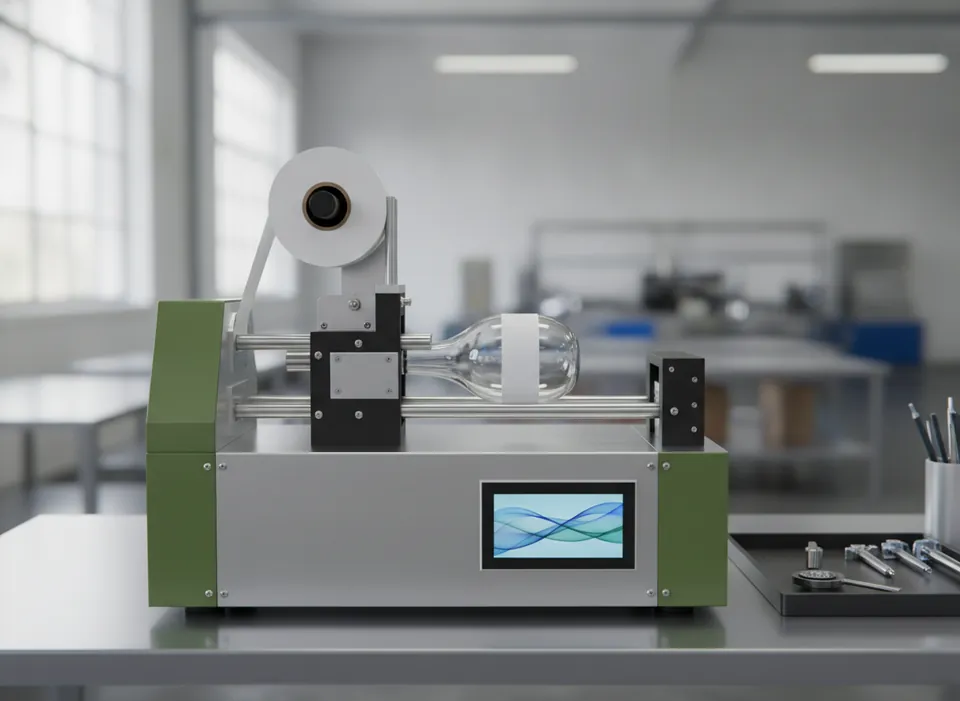

Semi-Automatic Round Bottle Labeller
Bench-top labelling for start-ups and short runs.
Shrink Sleeve Applicator with Steam Tunnel
Full-body sleeves and tamper bands on shaped containers.
Models at a glance
| Model | Machine | Label type | Container range | Label height | Speed |
|---|---|---|---|---|---|
| LB-R100 | Wrap-Around Bottle Labelling Machine | Self-adhesive, wrap-around | Ø 20–120 mm round containers | 15–180 mm | Up to 120 containers/min |
| LB-F200 | Front & Back Labelling Machine | Self-adhesive, front and back | 20–120 mm wide, 60–350 mm tall | 15–200 mm | Up to 150 containers/min |
| LB-T120 | Top Labelling Machine | Self-adhesive, top apply | Up to 300 mm wide, 5–200 mm high | 15–200 mm | Up to 100 products/min |
| LB-TB150 | Top & Bottom Labelling Machine | Self-adhesive, top and bottom | 50–300 mm wide, 10–150 mm high | 15–200 mm | Up to 120 products/min |
| LB-S80 | Semi-Automatic Round Bottle Labeller | Self-adhesive, wrap or front/back on one web | Ø 15–150 mm round containers | 10–200 mm | 20–40 containers/min |
| LB-SL300 | Shrink Sleeve Applicator with Steam Tunnel | Shrink sleeve (PVC, PETG, OPS) | Ø 28–125 mm, 30–280 mm tall | Sleeve cut length 30–250 mm | Up to 300 containers/min |
Typical configurations. Final values are confirmed in your quotation.
Process sequence
Space
An infeed wheel or belt separates containers to a set pitch.
Sense
The product sensor triggers the labelling head.
Dispense
The web advances one label over the peel plate at product speed.
Wrap
A belt, brush or roller presses the label around the container.
Discharge
Labelled products leave to the next station or a collection table.
Common questions
How accurate is label placement?
Can one machine run round and flat bottles?
What is needed for shrink sleeves?
Tell us about your product
Send a sample, a drawing or just a description. We will recommend the right machine and show you the result.
