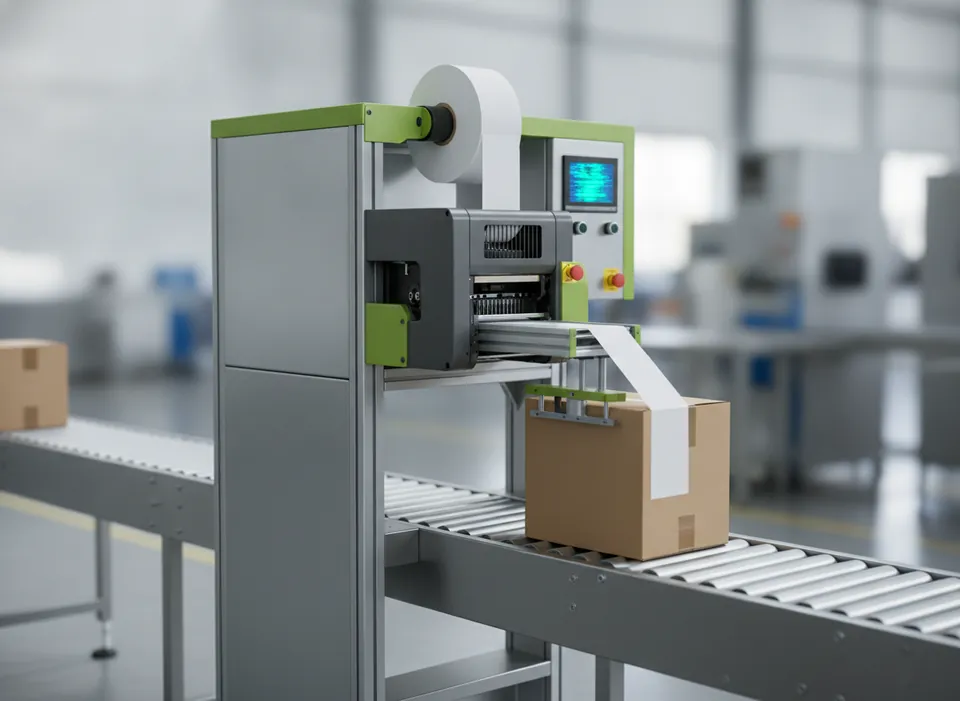

Corner-Wrap Print-and-Apply Labeller
One label across two adjacent sides of the case.
Built around your product
Retail and logistics standards often require a barcode on two sides. The PA-160 wraps a single 6-inch label around the leading corner so it can be scanned from the front or the side.
A thermal print engine images each label by direct thermal or thermal transfer. In a print-and-apply system the liner is stripped at a peel edge and the label is held on a vacuum pad, then tamped, blown or wiped onto the pack. Servo applicators measure the approach so varying case heights are labelled without crushing.
Key features
- Two-panel labelling with one applicator
- All-electric servo arm — no air needed
- Scanner option with re-apply
- Handles mixed case sizes
Process sequence
Receive
Label data arrives from ERP, WMS or the line controller.
The engine prints text, barcodes and graphics at 203–600 dpi.
Peel
The label separates from its liner and transfers to the applicator pad.
Apply
Tamp, blow or wipe-on places the label on the moving pack.
Check
A scanner reads the barcode and flags no-reads.
Machine video
A closer look at a typical label printers & print-apply installation. Ask us for a live demonstration of the PA-160 on your own product.
Specifications
| Model | PA-160 |
|---|---|
| Print method | Direct thermal / thermal transfer |
| Resolution | 203 / 300 dpi |
| Print width | 168 mm (6-inch engine) |
| Print speed | 250 mm/s |
| Label size | 100 × 150 mm to 160 × 300 mm |
| Applicator | Servo corner-wrap arm |
| Throughput | Up to 30 cases/min |
| Interfaces | Ethernet, RS-232, I/O |
Typical configuration. Final values depend on your product and are confirmed in the quotation.
Add-ons
- Tamp, tamp-blow, wipe-on or corner-wrap applicators
- Barcode scanner with re-apply logic
- Low-label and ribbon-out beacon
- Height-adjustable stand
Suitable materials and packs
Questions
Direct thermal or thermal transfer?
What does a pallet label need to contain?
Can one applicator handle different case sizes?
Get a proposal for this machine
- Application review by an engineer — material, code and line speed
- Trial marking, printing or packing on your own samples
- Quotation with layout, lead time, installation and service
Prefer to talk? Email info@motionworksrobotics.com or call +91 98100 93680.
