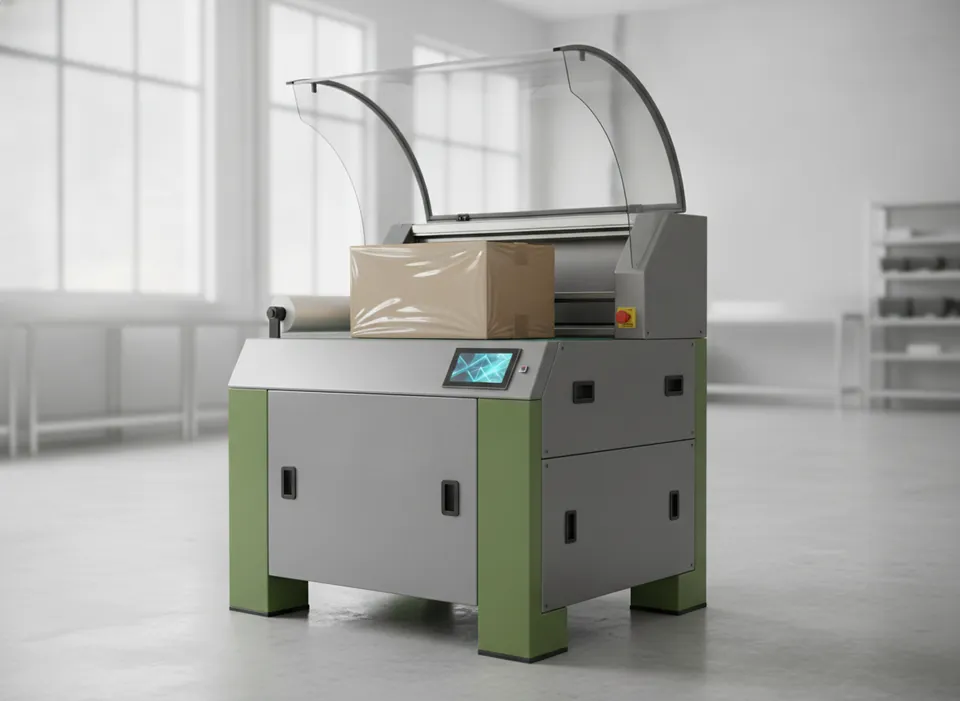

Chamber Shrink Wrapping Machine
One-step seal and shrink for low volumes.
Built around your product
Lower the hood and the SW-C25 seals and shrinks in one cycle. It needs little space and no separate tunnel — ideal for shops, kitchens and short production runs.
The product is enveloped in centre-folded or flat film and the open edges are sealed by a hot knife or impulse wire. In the tunnel, recirculated hot air shrinks the film evenly around the product. Polyolefin is used for retail display packs; polyethylene for heavier transit bundles.
Key features
- Seal-only or seal-and-shrink modes
- Magnetic hood hold-down
- Compact, on castors
- Six stored programmes
Process sequence
Infeed
Products are spaced or collated into the pack pattern.
Wrap
Film is drawn around the product from one or two reels.
Seal
An L-bar, side-seal or cross-seal jaw closes and trims the film.
Shrink
The tunnel heats the film to its shrink temperature.
Cool
A cooling fan sets the film before discharge.
Machine video
A closer look at a typical shrink packaging installation. Ask us for a live demonstration of the SW-C25 on your own product.
Specifications
| Model | SW-C25 |
|---|---|
| Sealing type | Hood type, seal and shrink in one cycle |
| Max pack size | 500 × 380 × 200 mm |
| Speed | Up to 6 packs/min |
| Film | POF or PVC centre-fold, 12–25 µm |
| Tunnel opening | Chamber 560 × 430 × 250 mm |
| Heater power | 3 kW |
| Power supply | 220 V single phase |
| Air supply | Not required |
Typical configuration. Final values depend on your product and are confirmed in the quotation.
Add-ons
- Automatic collating infeed
- Print-registered film control
- Tray or pad feeder
- Cooling conveyor
Suitable materials and packs
Questions
POF, PE or PVC film?
L-sealer or side-sealer?
Why do packs show “dog ears”?
Get a proposal for this machine
- Application review by an engineer — material, code and line speed
- Trial marking, printing or packing on your own samples
- Quotation with layout, lead time, installation and service
Prefer to talk? Email info@motionworksrobotics.com or call +91 98100 93680.
Ask about this machine
