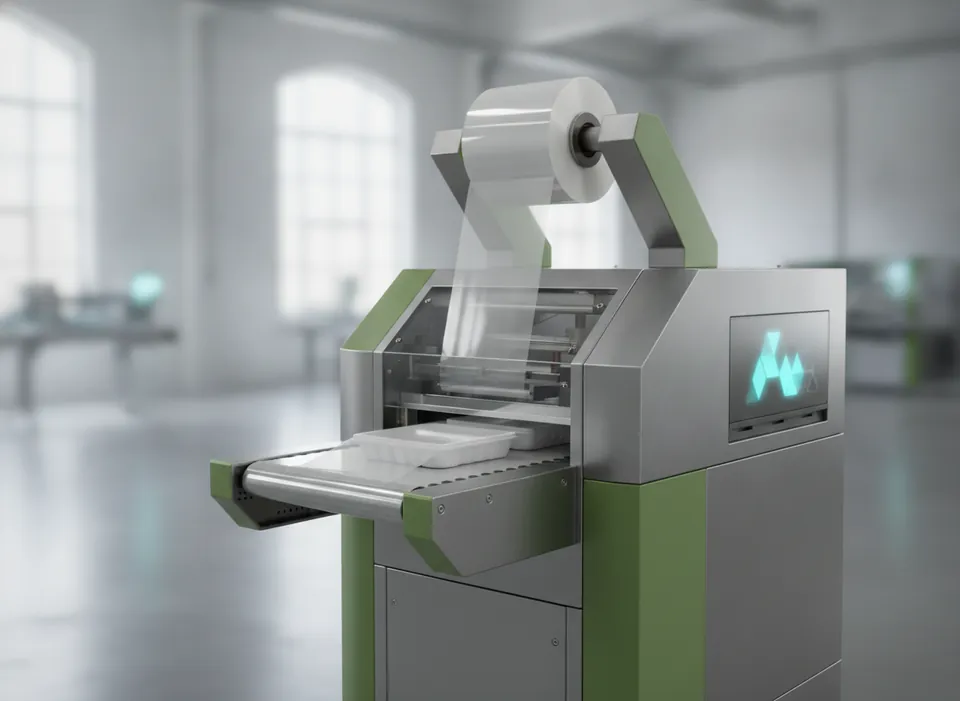

Tray Sealing Machine with MAP
Seals lidding film to preformed trays, with gas flush.
Built around your product
Trays enter the sealing tool, air is evacuated and replaced with protective gas, and the film is sealed and cut to the tray outline. It suits fresh meat, ready meals, salads and bakery.
Continuous band sealers carry the bag mouth between heated bars and cooling blocks while a conveyor supports the bag. Chamber machines evacuate air around the product, optionally back-flush with gas, then seal. Tray sealers and thermoformers use a tool to seal top film to a tray or formed pocket and trim it to shape.
Key features
- Quick-change tooling
- Inside-cut or outside-cut film
- Gas-mix analyser option
- TTO mount for lidding-film coding
Process sequence
Load
Filled bags or trays are placed on the conveyor or in the chamber.
Evacuate
Vacuum pumps remove air to the set level (vacuum and MAP models).
Flush
Protective gas is injected where modified atmosphere is used.
Seal
Heat, pressure and dwell time fuse the sealing layers.
Cool & code
Seals are cooled and a date code is embossed or printed.
Machine video
A closer look at a typical sealing & vacuum packaging installation. Ask us for a live demonstration of the SV-T300 on your own product.
Specifications
| Model | SV-T300 |
|---|---|
| Type | Tray sealer, vacuum-gas or seal-only |
| Seal size | Tool-dependent, film up to 320 mm wide |
| Speed / cycle | 5–8 cycles/min (2–4 trays per cycle) |
| Chamber / tray size | Trays up to 370 × 270 × 100 mm |
| Pump / heater | 63 m³/h pump |
| Construction | 304 stainless steel, washdown |
| Power supply | 380 V three phase, 3.5 kW |
| Weight | 320 kg |
Typical configuration. Final values depend on your product and are confirmed in the quotation.
Add-ons
- Gas flush (MAP)
- Emboss or ink date coding on the seal
- Nitrogen-flush band sealing
- Stainless washdown build
Suitable materials and packs
Questions
What is MAP?
Which films can a band sealer handle?
Single or double chamber?
Get a proposal for this machine
- Application review by an engineer — material, code and line speed
- Trial marking, printing or packing on your own samples
- Quotation with layout, lead time, installation and service
Prefer to talk? Email info@motionworksrobotics.com or call +91 98100 93680.
