Thermal Inkjet (TIJ) · TJ-S600

Serialisation TIJ Printer

High-grade 2D codes for pharmaceutical cartons.

Get price and lead timeSpecifications
Pharmaceutical & MedicalFoodCosmetics & Personal CareE-commerce & LogisticsTobacco

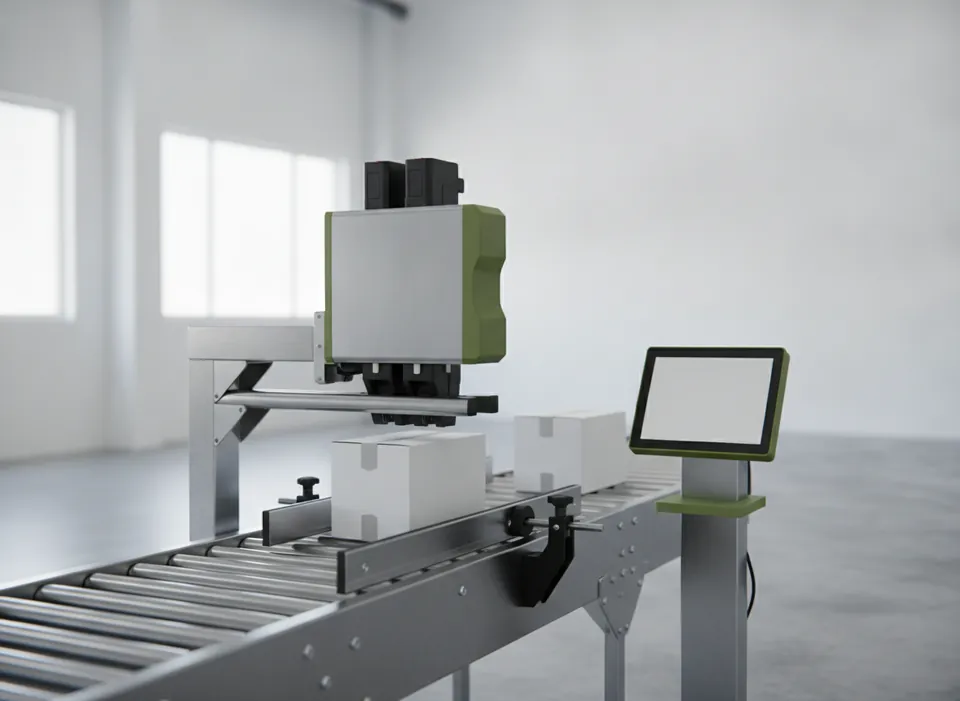

Serialisation TIJ Printer
How it works

Built around your product

The TJ-S600 is designed for track-and-trace lines. It prints unique serial numbers in GS1 DataMatrix at full resolution, buffers data from the serialisation manager and partners with a camera for 100% verification.

Each cartridge contains hundreds of microscopic nozzles. A resistor behind each nozzle heats the ink for a few microseconds, forming a vapour bubble that ejects a droplet. Nozzles are fired in columns as the product passes, building the image. Water-based inks suit porous board; solvent and UV-curable inks extend TIJ to films, foils and coated cartons.

Key features

  • Fast data buffer for unique codes
  • Consistent grade-A/B 2D codes on varnished board
  • Audit trail and user access control
  • Camera handshake for verify-and-reject
Print height12.7 mm (up to 4 heads)
Resolution600 × 600 dpi
Max line speed120 m/min at 300 dpi
Printheads1–4
Machine cycle

Process sequence

Load

Snap in a cartridge; the printer reads ink type and level from its chip.

Design

Create the message on the touchscreen or send it from the line software.

Trigger

A sensor starts the print as the pack passes within a few millimetres.

Print

Nozzle columns fire in sequence at up to 600 dpi.

Cap

An optional shutter keeps solvent cartridges ready during line stops.

In action

Machine video

A closer look at a typical thermal inkjet (tij) installation. Ask us for a live demonstration of the TJ-S600 on your own product.

Technical data

Specifications

ModelTJ-S600
Print height12.7 mm (up to 4 heads)
Resolution600 × 600 dpi
Max line speed120 m/min at 300 dpi
Printheads1–4
Ink typesSolvent and UV-curable cartridges for coated board
Throw distance0.5–2 mm
InterfacesEthernet, OPC UA, I/O
Display10-inch touchscreen

Typical configuration. Final values depend on your product and are confirmed in the quotation.

Options

Add-ons

  • Automatic capping station for solvent inks
  • Bulk ink supply for long runs
  • Multi-head stitching up to 50.8 mm
  • UV LED pinning lamp

Suitable materials and packs

Folding CartonsCorrugated CasesLabelsFlexible Film & Pouches

Questions

Is TIJ suitable for non-porous materials?
Yes, with solvent-based or UV-curable cartridges. Throw distance is short, so the surface must pass close to the printhead and be reasonably flat.
When is TIJ a better fit than CIJ?
When you need high-resolution codes, a clean environment and near-zero maintenance, and the product has a flat face that can run close to the head.
How long does a cartridge last?
It depends on the message. A simple two-line date code can yield several hundred thousand prints from one 42 ml cartridge.
Next step

Get a proposal for this machine

  • Application review by an engineer — material, code and line speed
  • Trial marking, printing or packing on your own samples
  • Quotation with layout, lead time, installation and service

Prefer to talk? Email info@motionworksrobotics.com or call +91 98100 93680.
