Mid-Range CIJ Printer
Five-line printing and networking for multi-shift production.
Built around your product
The CJ-520 adds print lines, speed and connectivity. It suits food and beverage lines that run two or three shifts and need the printer to take job data from line software.
Ink is pumped under pressure through a nozzle and broken into a steady stream of droplets by a piezo crystal. Selected drops receive an electrical charge and are deflected by a high-voltage plate onto the product to form characters; uncharged drops return to the gutter and are recycled. Solvent make-up keeps viscosity constant across temperature changes.
Key features
- Up to five lines of print
- Long service interval with a single service module
- Automatic viscosity control across temperature
- Remote monitoring over Ethernet
Process sequence
Start
Automatic nozzle flush and jet alignment bring the printer to ready.
Sense
A product sensor triggers the print; the encoder matches character width to speed.
Charged drops fly 5–15 mm to the surface and dry in about a second.
Recycle
Unused ink returns through the gutter to the mixing tank.
Shut down
The printhead cleans and seals itself for a clean next start.
Machine video
A closer look at a typical continuous inkjet (cij) installation. Ask us for a live demonstration of the CJ-520 on your own product.
Specifications
| Model | CJ-520 |
|---|---|
| Print lines | 1–5 |
| Character height | 1.2–12 mm |
| Max line speed | 280 m/min (single line) |
| Nozzle size | 60 µm (50 / 70 µm optional) |
| Ink types | MEK, ethanol, acetone and food-grade inks |
| Umbilical length | 3 m (6 m optional) |
| Protection rating | IP55 (IP65 optional) |
| Interfaces | Ethernet, USB, RS-232, I/O |
Typical configuration. Final values depend on your product and are confirmed in the quotation.
Add-ons
- Positive-air printhead kit for dusty lines
- Right-angle or extended umbilical
- Beacon and product-reject outputs
- Stainless stand with traversing arm
Suitable materials and packs
Questions
How many lines can a CIJ printer print?
What maintenance does CIJ need?
Can CIJ print on dark surfaces?
Get a proposal for this machine
- Application review by an engineer — material, code and line speed
- Trial marking, printing or packing on your own samples
- Quotation with layout, lead time, installation and service
Prefer to talk? Email info@motionworksrobotics.com or call +91 98100 93680.
Ask about this machine
More continuous inkjet (cij) machines
Entry-Level CIJ Printer
Straightforward date and batch coding for single-shift lines.

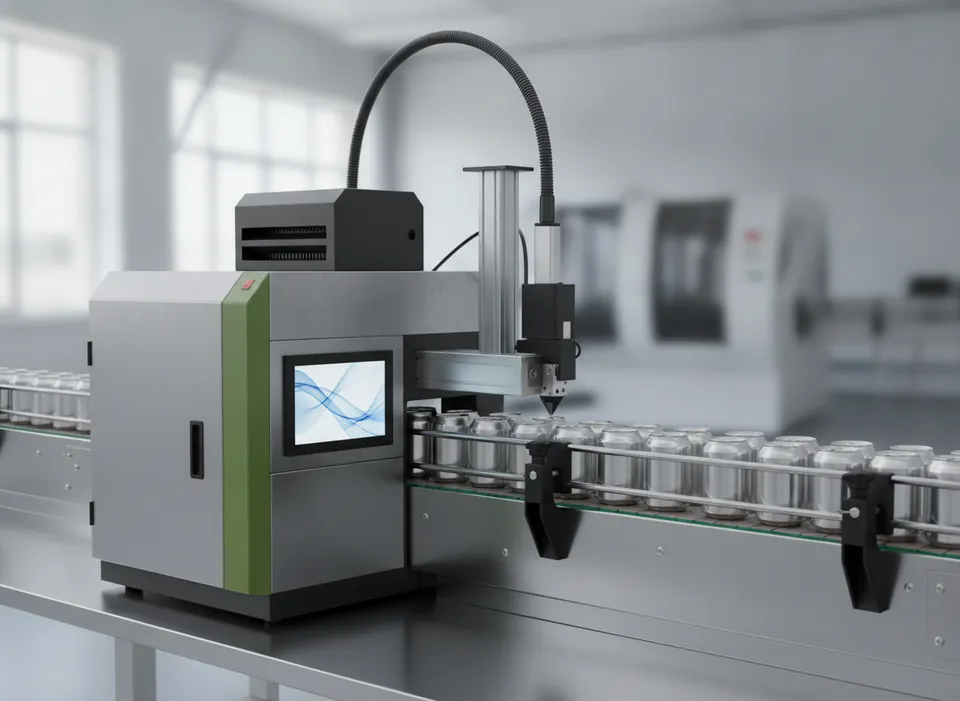

High-Speed CIJ Printer
Built for canning, bottling and extrusion at full speed.

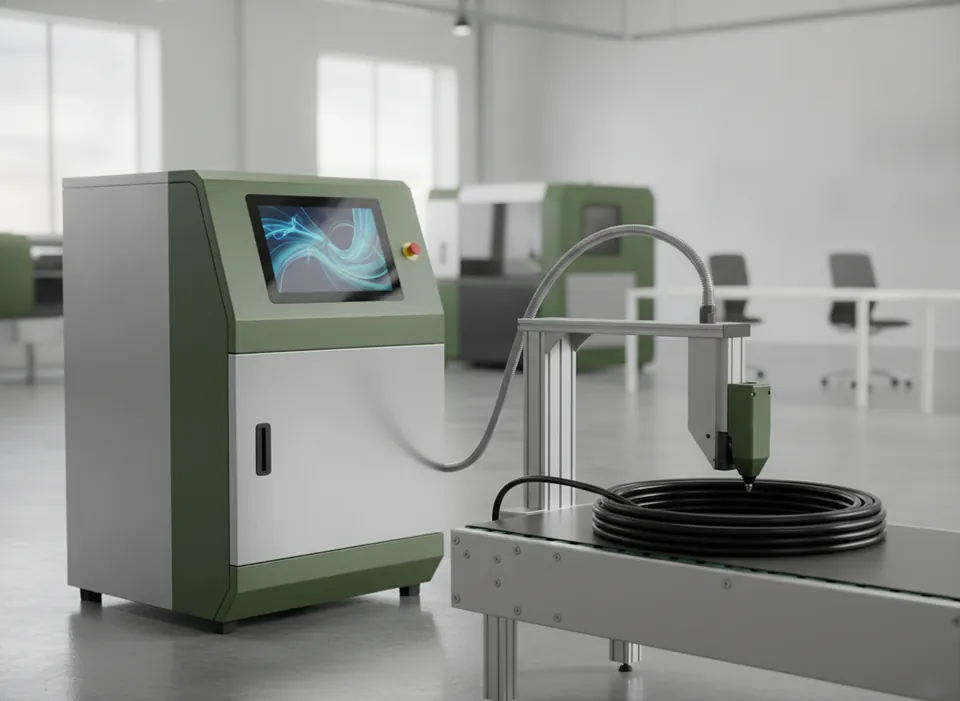

Pigmented-Ink CIJ Printer
