Large-Format UV Batch Marking System
Gantry UV laser that marks full trays of parts in one cycle.
Built around your product

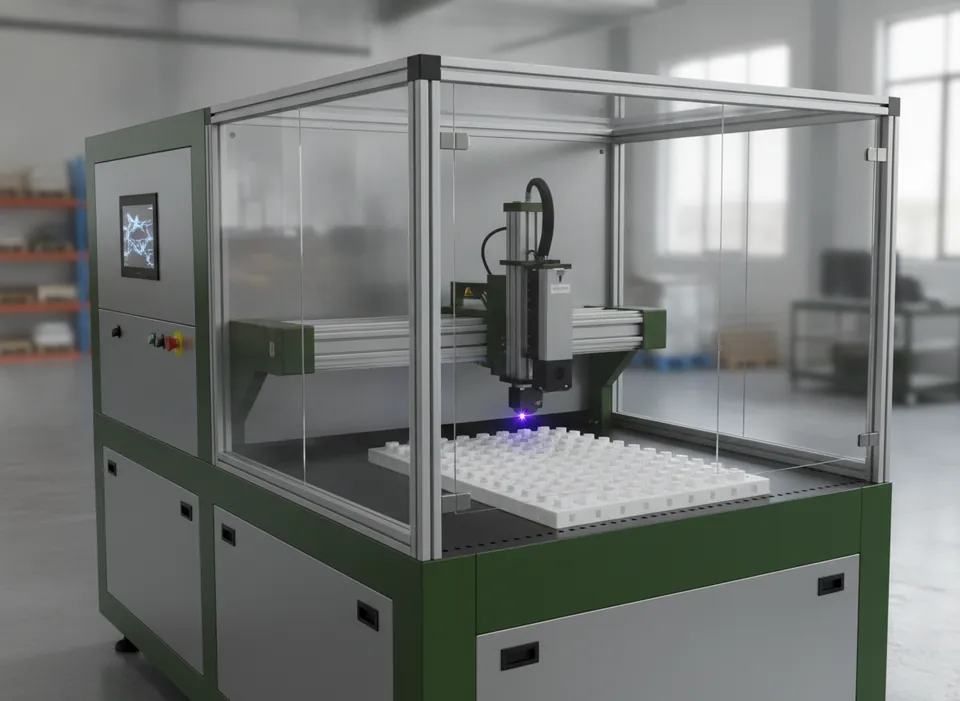

The UV-XY5 moves the scan head over a large bed on an XY gantry. Load a tray of moulded parts, data plates or promotional items, press start, and every piece is marked — including a unique serial number on each.
An infrared beam is frequency-tripled inside the laser cavity to produce ultraviolet light, then delivered through a galvo scan head. The small spot size gives very fine characters and dense 2D codes. Because the heat-affected zone is minimal, UV is the usual choice for white HDPE, flexible film, medical tubing, cable jackets, glass and chip packages.
Key features
- Step-and-repeat marking across the bed
- Camera-assisted part recognition
- Tray templates stored as recipes
- Per-part serialisation from a CSV or database
Process sequence
Position
Product is presented on the conveyor, in a tray or on a fixture.
Focus
A fixed or motorised Z-axis sets the focal distance for the part height.
Mark
The 355 nm beam changes the surface colour without cutting into it.
Extract
Light fume extraction keeps the lens and product clean.
Inspect
An optional vision system grades the code before the part moves on.
Machine video
A closer look at a typical uv laser marking installation. Ask us for a live demonstration of the UV-XY5 on your own product.
Specifications
| Model | UV-XY5 |
|---|---|
| Laser source | DPSS UV, frequency-tripled |
| Average power | 5 W (10 W optional) |
| Wavelength | 355 nm |
| Marking field | 600 × 400 mm travel, 110 × 110 mm field |
| Minimum line width | 0.02 mm |
| Max line speed | Batch marking |
| Cooling | Air / water |
| Protection rating | Class 1 enclosure |
Typical configuration. Final values depend on your product and are confirmed in the quotation.
Add-ons
- Motorised Z-axis with autofocus
- XY gantry for tray and batch marking
- Coaxial camera for mark-on-target alignment
- Chiller for higher-power water-cooled sources
Suitable materials and packs
Questions
Why choose UV over fiber for plastics?
Can UV lasers mark flexible packaging film?
How much power do I need?
Get a proposal for this machine
- Application review by an engineer — material, code and line speed
- Trial marking, printing or packing on your own samples
- Quotation with layout, lead time, installation and service
Prefer to talk? Email info@motionworksrobotics.com or call +91 98100 93680.
Ask about this machine
