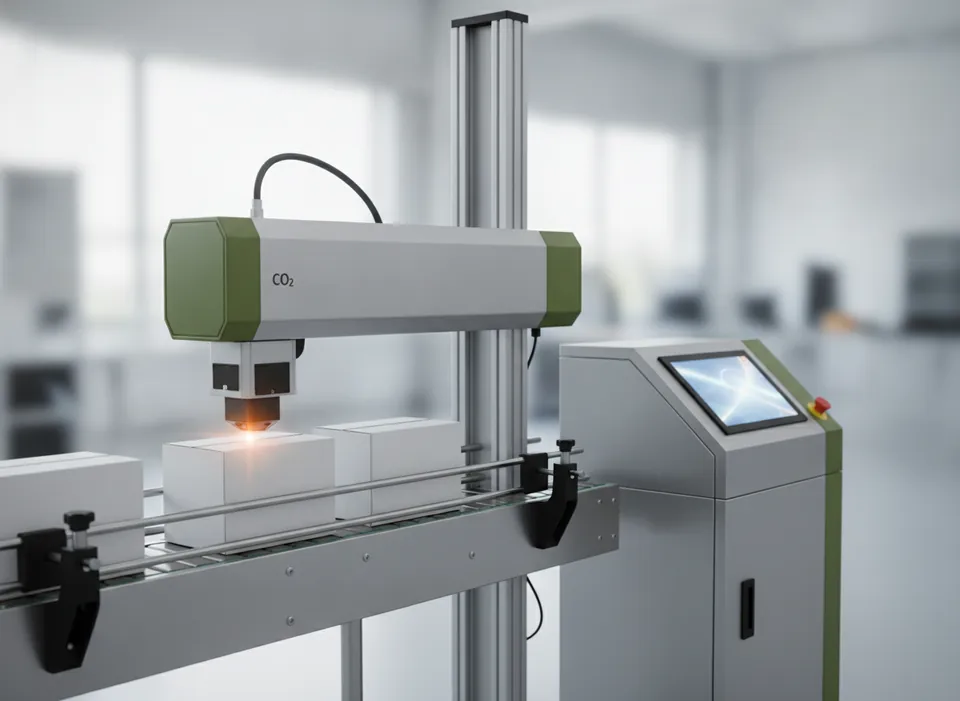

10.2 µm CO2 Laser Coder for Laminated Cartons
Crisp codes on coated board, laminates and BOPP film.
Built around your product
Coated and laminated packaging responds best to 10.2 µm. The CL-30K gives sharp contrast on glossy pharmaceutical and cosmetic cartons, laminated labels and coated films where 10.6 µm marks look faint.
An RF-excited sealed tube generates the beam, and a galvo scan head writes characters as continuous vector strokes. Choosing the wavelength matters: 10.6 µm suits paper, board, glass and wood; 9.3 µm gives a clean frosted mark on PET bottles; 10.2 µm works well on laminated cartons and coated films.
Key features
- High contrast on laminated and varnished board
- Serialisation-ready data handling
- Works with laser-reactive coatings
- Small footprint for cartoner integration
Process sequence
Trigger
A sensor detects each pack; the encoder supplies line speed.
Compose
The controller builds the message from real-time date, shift and counter data.
Scribe
The scan head writes the code while the product keeps moving.
Extract
A fume extractor captures ablated ink and dust.
Confirm
A code reader or OCR camera checks presence and legibility.
Machine video
A closer look at a typical co2 laser marking installation. Ask us for a live demonstration of the CL-30K on your own product.
Specifications
| Model | CL-30K |
|---|---|
| Laser tube | Sealed RF-excited CO2 |
| Average power | 30 W |
| Wavelength | 10.2 µm |
| Marking field | 100 × 100 mm |
| Characters per second | Up to 1,300 |
| Max line speed | 180 m/min |
| Cooling | Air |
| Protection rating | IP54 |
Typical configuration. Final values depend on your product and are confirmed in the quotation.
Add-ons
- Choice of 9.3, 10.2 or 10.6 µm tube
- IP65 washdown head for wet filling halls
- Beam delivery extensions and 90° turning units
- Dual-head controller for two lanes
Suitable materials and packs
Questions
Which wavelength should I use on PET bottles?
Can CO2 lasers mark bare metal?
How long does a CO2 tube last?
Get a proposal for this machine
- Application review by an engineer — material, code and line speed
- Trial marking, printing or packing on your own samples
- Quotation with layout, lead time, installation and service
